TENS Unit EMS Muscle Stimulator KWD808-I Nerve and Muscle Electro Acupuncture Therapy 6 Waveforms 6 Output EMS Massager
TENS Unit EMS Muscle Stimulator KWD808-I Nerve and Muscle Electro Acupuncture Therapy 6 Waveforms 6 Output EMS Massager
Couldn't load pickup availability
SPECIFICATIONS
Application: BODY
Brand Name: ECOVV
Certification: CE
Electronic: No
Hign-concerned Chemical: None
Is Batteries Included: No
Origin: Mainland China
TENS Unit EMS Muscle Stimulator KWD808-I Nerve and Muscle Electro Acupuncture Therapy 6 Waveforms 6 Output EMS Massager
Description:
- KWD 808 I Acupuncture machine multipurpose health device is a new product that has been incorporated merits of kind both at home and abroad. This brings a new image to traditional acupuncture, the concept of no puncture, no needle with guaranteed therapeutic results.
- KWD-808 I electronic acupuncture treatment multipurpose health device with 6 channels. It can be used as a substitute for acupuncture and/or hand massage. It improves blood circulation in general, eliminate pain and spasm and strengthen the body's resistance to disease. It is also helpful on treating chronic arthritis, strain, stiff neck, lumbago headache, toothache impotence, insomnia, shoulder pain numbness of extremities trigeminal neuralgia, sciatica intercostal neuralgia, tiredness of eye and general tiredness.
The Acupuncture Stimulator is a professional level acupuncture apparatus designed for detection of acupuncture points, massage (TENS), and for applying acupuncture (electro-needle therapy) and magneto-therapy.
It features a built-in timer and can output 5 different kinds of waveforms, each indicated by a symbol which lights up when selected. However, unique features specific to only this model include 2 detection jacks, 6 outputs, and a design tailored chiefly for clinics and hospitals.
Main Function:
- Being an aid to detect acupoint.
- Having needle-less acupuncture pulse electric therapy.
- Having electro needle therapy.
- Replacing of hand massage.
- Music timer switch for Medical Treatment
- Operating output protection device

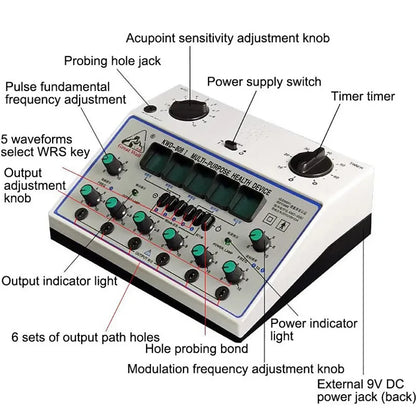

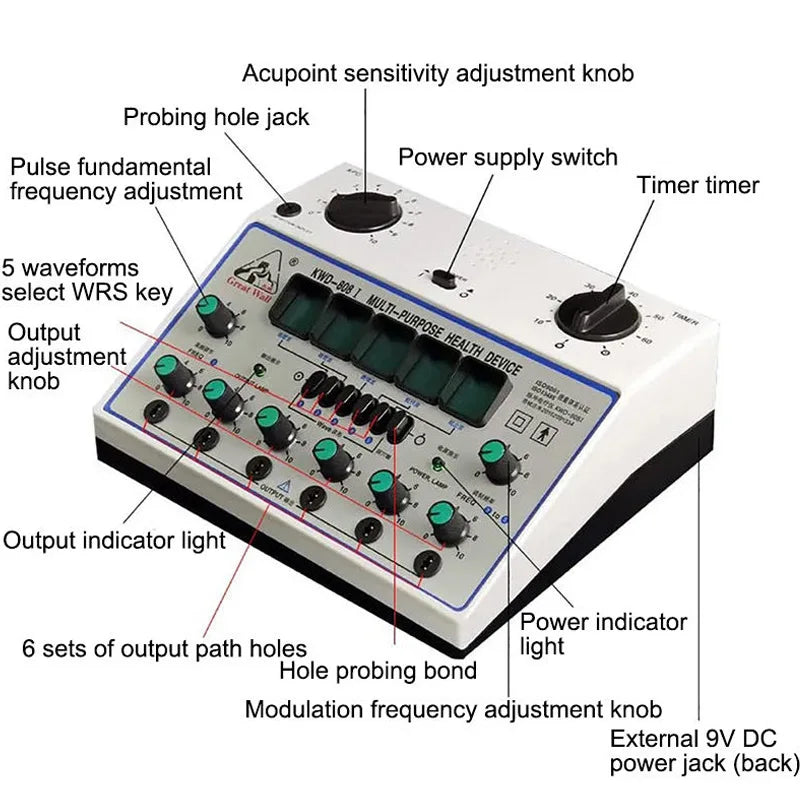

Features:
- The device is very safe and efficient in treatment because of its output pulse. Waves featuring low voltage, low frequency and having the same frequency range as the body.
- There are 5 types of pulse waves to be selected: Continuous wave, Dense-disperse wave, Intermittent wave, Ripple wave, Respiration wave.
- Four kinds of wave combinations can be used at the same time or separately. And the output of each one can be regulated independently. In order to strengthen the effect, please get the two outputs or more crossed to use.
-Adjustable frequency and intensity
-Adjustable sensitivity probe point Locator
-2 independent indicator lights for frequency and power
-Use with adaptor or 6 "C" batteries
-Operating output protection with error signal tone for incorrect use
-6 outputs, plus 2 detection outputs
-Includes adhesive electrode pads and lead wires, acupoint detecting pen, and output wires.
Built-in timer
Technical Specification:
Output Pulse Road:6 Channels outputs
Output Pulse Wave:un-symmetry two-direction pulse wave
Output Pulse frequency: 1 ~ 100 Hz continuously adjustable
Output Current: 50 mA(Load 500)
Output Pulse width:0.20ms
Voltage：A/C 110V--240V, D/C 9V
Input Power:5.0VA(including AC Adapter)
Power Source : DC 9V (CR14, UM2), or AC adaptor
Max Power Consumption：<5 W
Battery requirement：6 "C" Size Batteries
Intermittent wave : continuous wave
Frequency adjustable in 1~100 Hz, break-wave time is 5 seconds, continuous
Machine Dimensions :260 x 190 x 110 (mm)
One set Weight :1.1 kg

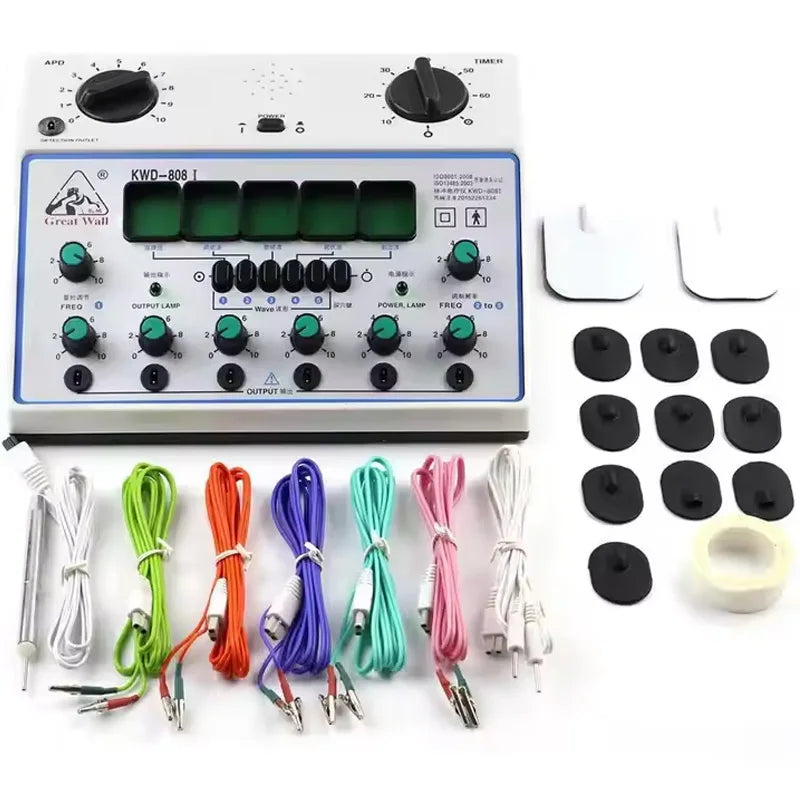

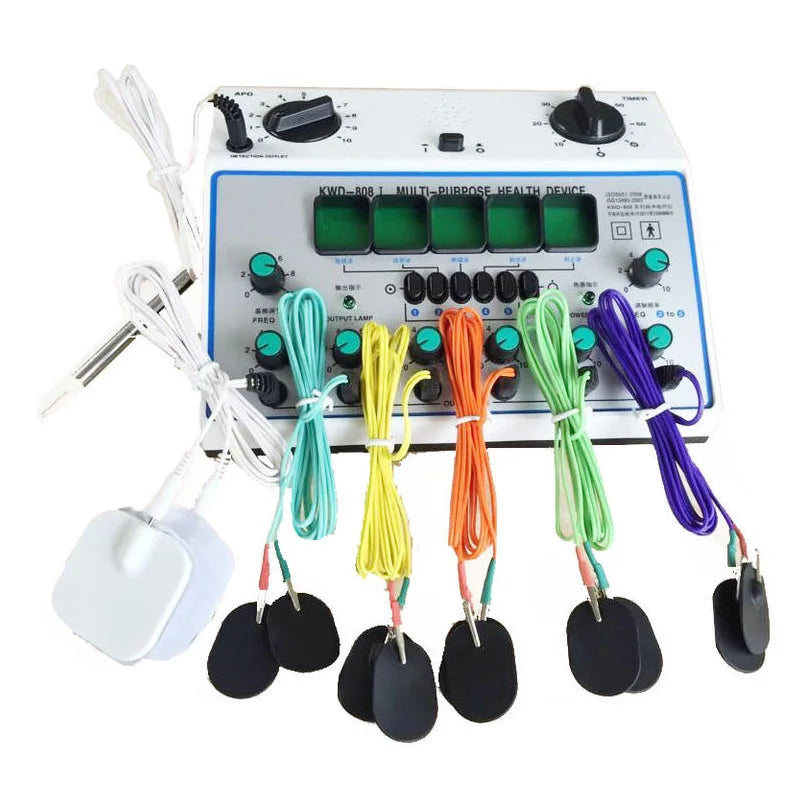

Package included:
- 1x Main Unit
-1x Acupoint Detecting Pen
- 5x Output Electrode Wires
- 1x Inserting Output Electrode Wires
-10x Small Electrode sticker
-2x Big Electrode sticker
- 1x Fixed tape
- 1x English Instruction manual
- 1x Acupoint figure
- 1x Warranty Card
-1x AC adaptor (110V-220V)

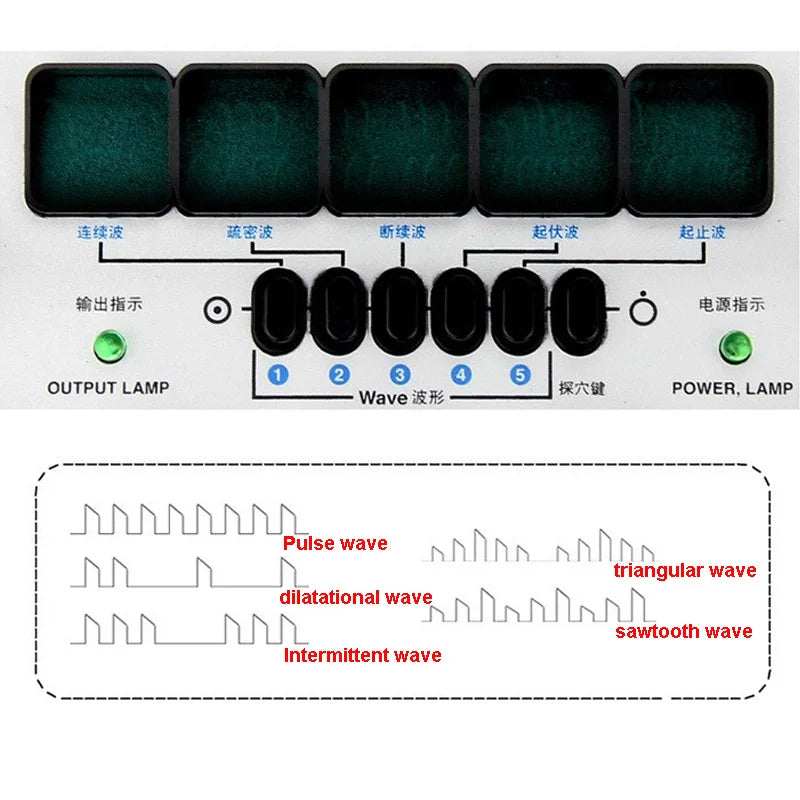

THE 5 PULSEWAVE FORMS FOR
This acupuncture stimulator features five kinds of wave forms, all very safe, with low frequencies equal to that of the human body. The following five wave forms may be used at the same time or separately, and the output of each one may be regulated independently. For increased effect, two or more outputs can be used simultaneously.
Continuous Wave
Pulse duration r = (0.5 +/- 0.15) ms; Repeated pulse frequency: f1=( 1+/- 0.5 ) Hz to ( 100 +/- 10) Hz. and FREQ1 can be regulated continuously, Max Output pulse amplitude: 40V +/- 10V (Load 500 O.)
Dense-Disperse Wave
Dense & disperse waves display altern¬atively. Disperse frequency: f1 (same with base wave); Dense frequency: 100 Hz. Pulse duration: 0.5ms. FREQ2 regu-lates the frequency f2 of (10 +/- 3) to (50 =/- 10) cycles per min. Max Output pulse amplitude: 40V +/- 10V (Load 500 O.)
Intermittent Wave
Pulse shows at regular interval at the same frequency.
Ripple Wave
Amplitude increase
Ripple Wave
Amplitude increases to maximum then drops to zero suddenly, and repeats. Frequency: (10 +/- 3) to (50 +/- 10) cycles /min. The Max output plus ampli¬tude range is over 5V to 30V (load 500 O.).
Respiration Wave
Amplitude increases first, then drops quickly to zero, and repeats. At 1kO load Vp3 = 24V, other pulse data are same as above.
